Overview of Casting Process

Casting is a process of injecting molten metal into a mold and cooling it to form it. The core is to achieve complex structure molding through sand molds, ceramic shells or metal molds. Relying on precision mold design, CNC machining centers and vacuum melting equipment, the company supports sand casting (low-cost thick-walled parts), precision casting (near-net-shape high-precision parts), die casting (thin-wall batch parts) and other processes, combined with three-coordinate measuring machines and ISO certification systems to ensure dimensional accuracy and material properties.

Application

Applicable to complex structures and high material utilization scenarios: automobile engine cylinders, hydraulic valve blocks, agricultural machinery gearboxes and forklift forks, etc. Through customized mold design and full-process quality inspection, the company provides corrosion-resistant, high-strength, and long-life metal solutions covering aviation, automobiles, industrial equipment and other fields.

Casting Process Steps

Mold Design and Preparation
Metal Smelting and Composition Control
Pouring and Molding Control
Cooling and Demoulding
Post-processing and Quality Inspection
Process Advantages

Mold Design and Preparation

Use CAD/CAM software to design 3D mold models, and use five-axis CNC machining centers to precisely process sand molds, ceramic shells or metal molds to ensure that the cavity size accuracy reaches ±0.1mm, which is suitable for sand casting (low cost), precision casting (near net shape) and die casting (thin-walled parts).
Metal Smelting and Composition Control

Use vacuum induction melting furnace (VIM) or arc furnace to melt metal, and use spectrometer to monitor composition (such as carbon and chromium content) in real time to ensure that material properties meet ASTM/GB standards, and support multi-material processing such as steel, aluminum alloy, and titanium alloy.
Pouring and Molding Control

Use automatic pouring system to inject molten metal into the mold, and optimize the fluidity of molten metal through temperature sensor (±2℃ accuracy) and pressure control system (die casting pressure 15-200MPa), avoid pores and shrinkage defects, and realize one-time molding of complex structures.
Cooling and Demoulding

Control the cooling rate according to the material characteristics (such as rapid cooling of aluminum alloy and slow cooling of titanium alloy), and safely demould by vibration demoulding machine or hydraulic device to avoid deformation or surface damage of castings.
Post-processing and Quality Inspection

Perform heat treatment (solid solution, aging), surface treatment (phosphating, spraying) and CNC finishing (tolerance ±0.05mm), fully inspect the dimensions by three-coordinate measuring machine, and combine the ISO 9001/16949 system to ensure product reliability, and finally deliver high-strength, corrosion-resistant customized castings.
Process Advantages

Autonomous control of the entire process from mold design to finished product delivery, combined with precision equipment and strict quality inspection, provides high material utilization (≥90%) and long life (life cycle extended by 20%-30%) casting solutions for scenes such as automobile engine cylinder blocks, hydraulic valve blocks, and agricultural machinery gearboxes.

Our Casting Capabilities

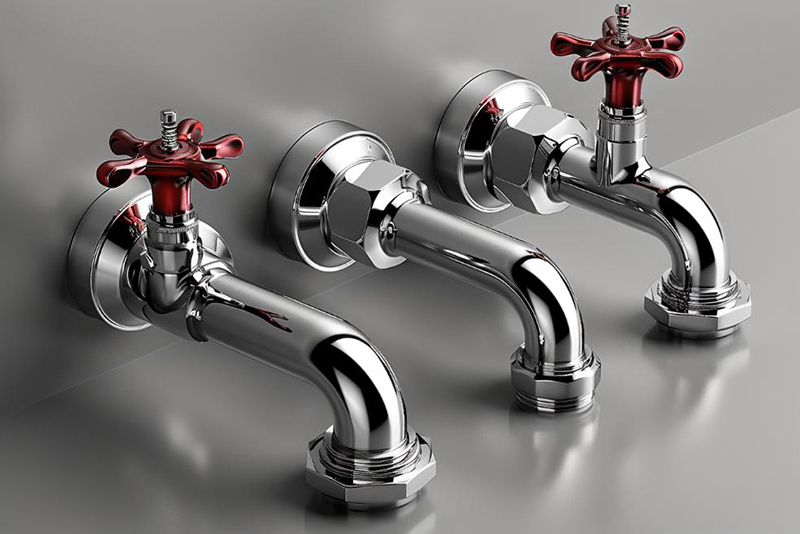

Lost Wax Casting

Process characteristics: the cavity is made by wax mold, and the wax material is melted out after casting, which is consistent with the investment casting technology path.

Advantages: complex hollow structures (such as pipe joints) can be cast without parting surface restrictions.

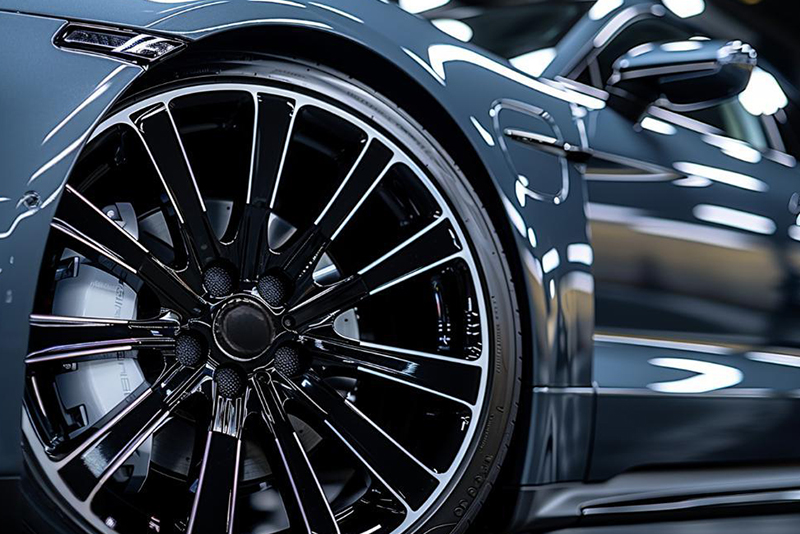

Die Casting

Process: High pressure is used to inject molten metal into metal mold, suitable for thin-walled parts (such as aluminum alloy wheels).

Advantages: good surface finish (Ra0.8-3.2μm), stable size, but easy to produce pores, high cost.
Investment Casting

Process: Same as precision casting, near-net shape is achieved through wax mold-ceramic shell process, suitable for jewelry and precision instruments.

Advantages: High tolerance accuracy, material utilization rate of 95%, but low production efficiency.

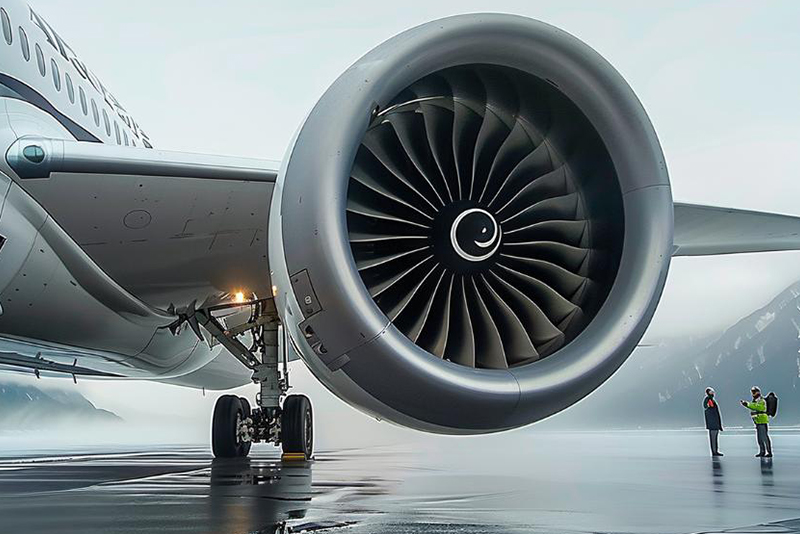

Precision Casting

Process: Make ceramic shell through wax mold, melt the wax mold and cast metal, suitable for high-precision complex parts (such as aircraft engine blades).

Advantages: High dimensional accuracy, smooth surface, can cast high melting point metals such as titanium, but the cost is relatively high.

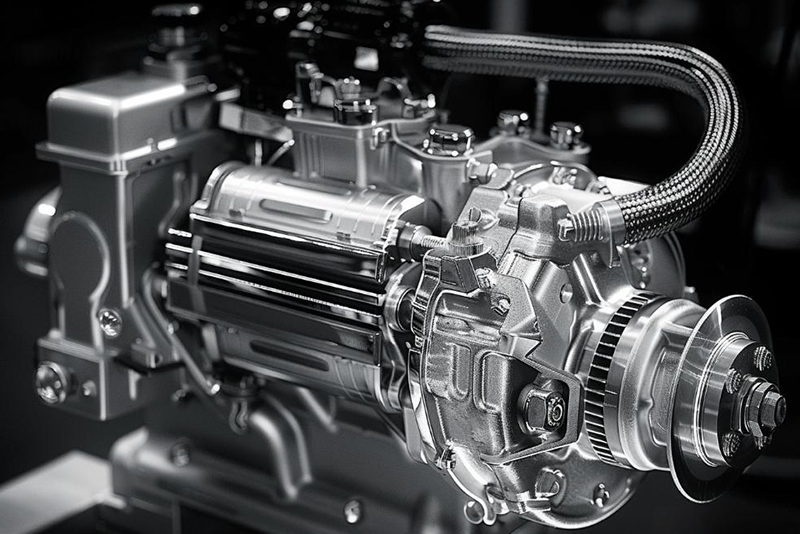

Sand Casting

Process: Use sand mold casting, divided into resin sand mold and metal mold, suitable for thick-walled parts (such as engine cylinder block).

Advantages: Low mold cost, but low surface finish, requiring subsequent processing.

Casting Production Advantages

Customized Mechanical Product Processing Advantages

Casting Process Advantages

The casting process is formed by injecting molten metal into the mold, supporting multiple process paths such as sand molds (low-cost thick-walled parts), precision casting (near-net-shape high-precision parts) and die casting (thin-wall batch parts). The material utilization rate reaches 85%-95%, and the dimensional accuracy reaches ±0.1mm. It is suitable for materials such as steel, aluminum alloy, and titanium alloy to meet the efficient manufacturing needs of complex structures such as automobile engine cylinders and hydraulic valve blocks.

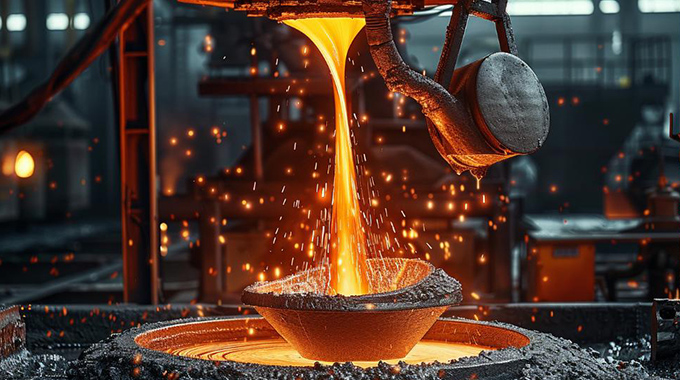

Process Advantages of hot forging auto parts Factory

Process Advantages of This Factory

Relying on five-axis CNC mold processing, vacuum melting furnace and automatic pouring system, it realizes independent control of the entire process from mold design to finished product delivery. Combined with full inspection of three-coordinate measuring machines and ISO 9001/16949 system, it provides corrosion-resistant, high-strength customized castings, with a life cycle that is 20%-30% longer than the industry average, covering aviation, automobiles, industrial equipment and other fields.

Available Materials for Our Casting Services

Material Support

We provide precision forging services for materials such as steel (high-strength gears/valve bodies), aluminum alloys (lightweight agricultural machinery/forklift parts), titanium alloys (corrosion-resistant aviation parts), copper (conductive hydraulic joints) and tungsten steel (wear-resistant tools). Through closed die forging, CNC machining and three-coordinate testing, combined with ISO certification system, we ensure that material performance is fully released, providing highly reliable and long-life customized solutions for the automotive, hydraulic, aviation and other fields.

Optional Surface Treatments for Custom Parts

We provide a variety of surface treatment solutions, including heat treatment (optimizing material hardness and toughness), phosphating (improving corrosion resistance), spraying (enhancing wear resistance and insulation performance) and nitriding (increasing surface hardness to above HV1000). Combined with ISO 9001/16949 quality system, we provide highly reliable and long-life customized surface treatment services for automotive, hydraulic, agricultural machinery and other fields.
